Administrative Tool

Archwizard

The archwizard is the administrative tools for monitoring and troubleshooting purpose.

  • To access the archwizard instance in STFC, get the latest external IP and port from k8s-test job. Make sure STFC VPN connection is on.

  • OR,After getting KUBECONFIG file locally run command as shown below to get details of service.

    kubectl --KUBECONFIG=<kubeconfig_filename> get svc

  • Copy the external-ip and port as shown below and paste it in new tab in browser.

    <external-ip>:<port>

  • Can be accessed using following link:

    archwizard.<KUBE_NAMESPACE>.svc.cluster.local:8000

    Note VPN will be required.

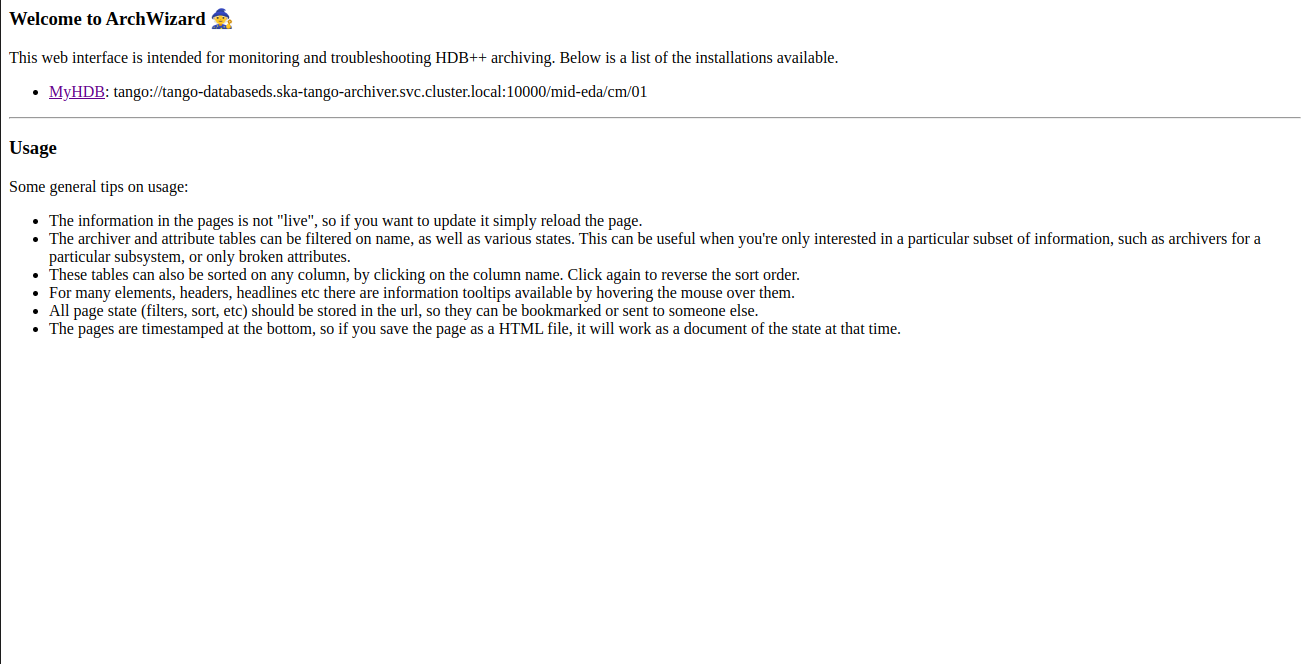

    1. Title page

    EDA Archwizard

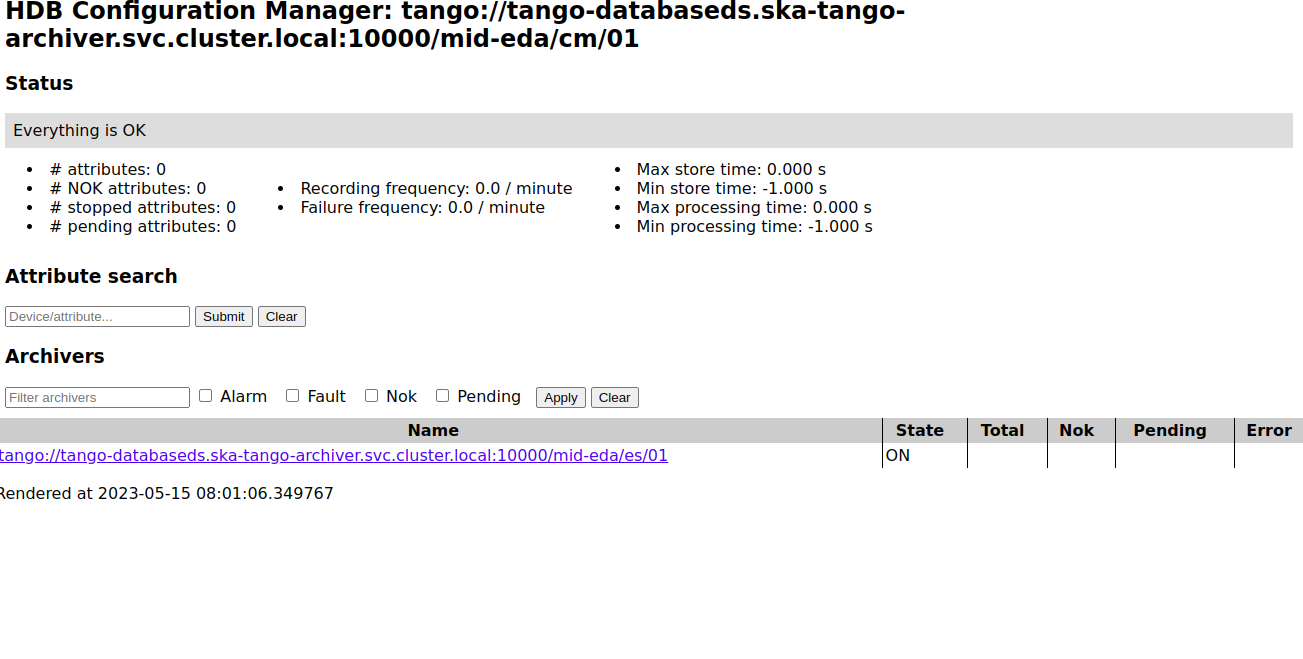

    1. Configuration Manager View

    EDA Archwizard

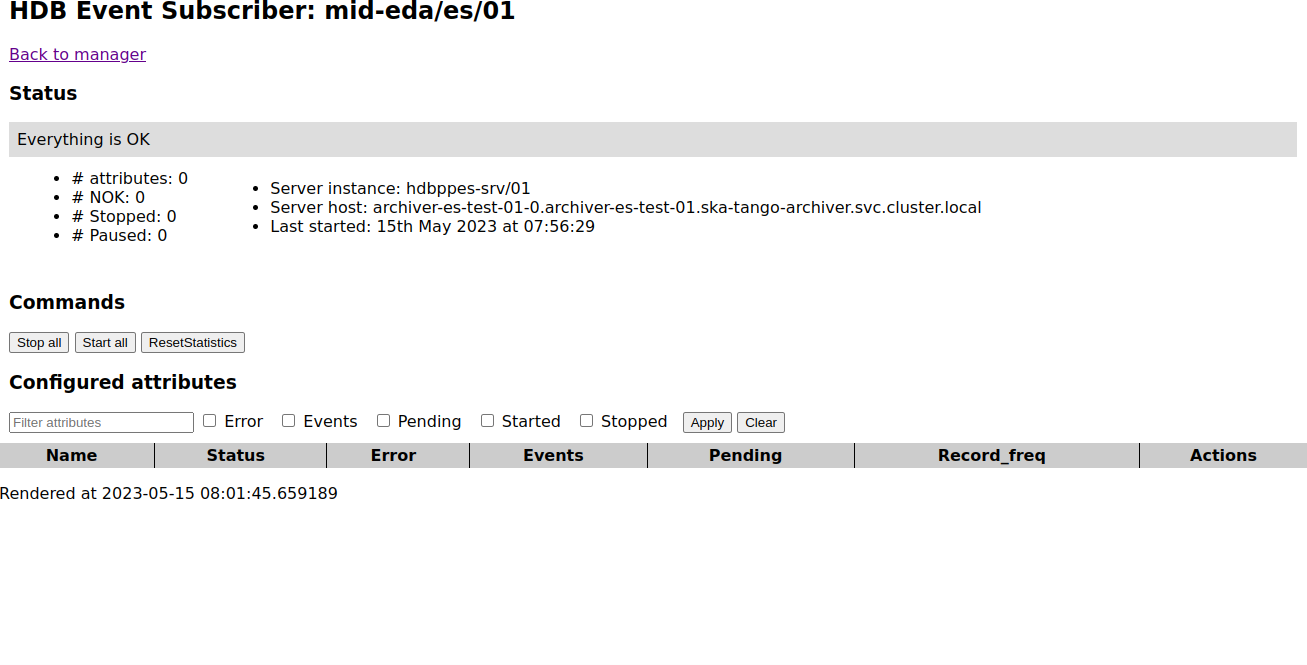

    1. Event Subscriber View

    EDA Archwizard
